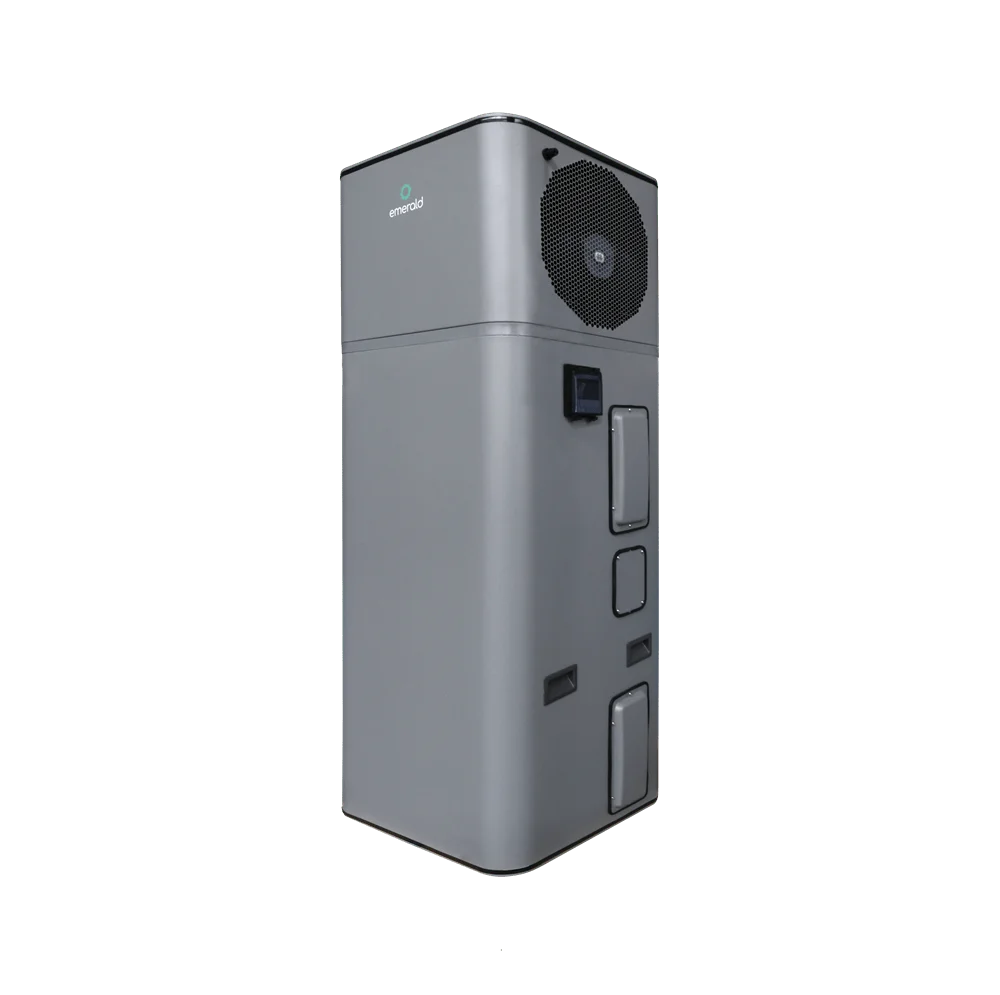

The Emerald Select 220L HPA1-S220E is an all-in-one heat pump hot water system for Australian homes. It combines a 220L enamel tank, built-in Wi-Fi and Emerald App control, R290 refrigerant, a 2.8kW heat pump and a built-in 1kW electric heating element for Boost and E-Heater modes.
Compare the capacities shown in the supplied Emerald Select range datasheet.
HPA1-S220E model featured on this page
The Emerald Select 220L HPA1-S220E captures heat from the surrounding air and transfers it into the storage tank. In standard heat-pump mode, it delivers 2.8kW heating capacity from a rated input of 0.68kW under the datasheet test conditions.
The “E” model includes a 1kW electric heating element. Boost mode combines the heat pump and element to deliver 3.8kW heating capacity and an 80L/h recharge rate, while built-in Wi-Fi connects the system to the Emerald App for mobile control and monitoring.
A COP of 4.19 under the stated test conditions helps the unit heat water efficiently.
Connect to the Emerald App for remote control, temperature information, scheduling and energy-use monitoring.
Uses a 350g R290 refrigerant charge; the manufacturer lists R290 with a global warming potential of 3.
The HPA1-S220E includes a 1kW element for additional hot-water recovery when required.
| Specification | HPA1-S220E Details |
|---|---|
| Brand / Range | Emerald Select E |
| Model | HPA1-S220E |
| Product Type | All-in-one heat pump hot water system |
| Water Tank Volume | 220L |
| Power Supply | 220–240V / 50Hz / single phase |
| Running Modes | Standard / Boost / E-Heater |
| Electric Heating Element | 1kW |
| Standard Mode | 2.8kW heating capacity; 0.68kW rated input; COP 4.19; 58L/h recharge rate |
| Boost Mode | 3.8kW heating capacity; 1.68kW rated input; 80L/h recharge rate |
| E-Heater Mode | 1.0kW heating capacity; 1.0kW rated input; 21.6L/h recharge rate |
| Maximum Current | 8.7A under Boost mode |
| Sound Level | 50dB(A), tested at 1m |
| Refrigerant | R290 (350g) |
| Compressor | GMCC (Toshiba JV), non-inverter rotary |
| Fan Motor / Fan Type | Non-DC inverter / axial |
| Inner Tank | Enamel; 2.5mm tank wall; 3.0mm dome; 540mm internal diameter; concave design |
| Tank Insulation | Polyurethane, 35–157mm |
| Expansion Valve / Defrost | Electronic expansion valve (EEV) / 4-way valve |
| TPR Valve | 850kPa |
| Rated Outlet Water Temperature | 60°C |
| Maximum Outlet Temperature | 70°C in heat-pump operation |
| Operating Range Without Element | -7°C to 43°C |
| Operating Range With Element | -15°C to 43°C |
| IP Class / Electric Shock Protection | IPX4 / Class I |
| Unpacked Dimensions | 600 × 600 × 1598mm |
| Packed Dimensions | 640 × 680 × 1720mm |
| Net / Gross Weight | 118kg / 126kg |
| Smart Control | Built-in Wi-Fi; Emerald App available |
| Optional Accessory | Electricity Advisor Wi-Fi pack for the Solar Soaker function |
| Warranty | 5-year tank warranty; 5-year parts warranty; 2-year labour warranty, subject to manufacturer terms and conditions |
Manufacturer test basis: ambient 20°C/15°C and water heated from 15°C to 55°C. Sound measured at 1m in a hemi-anechoic chamber. The manufacturer notes that Silent, Booster and E-Heater are one-shot functions that reset to Standard mode under AS/NZS 4234 modelling.
| Feature | Emerald 220 All in one SELECT with E | Emerald Pro |
|---|---|---|
| Technology | Non-inverter rotary compressor | DC inverter technology |
| Tank Capacity Shown | 220L | Model dependent |
| Sound Level at 1m | 50dB(A) | Check the selected Pro model datasheet |
| Built-in Electric Element | 1kW | Check the selected Pro model datasheet |
| App Control | Available | Available on compatible models |
| Positioning | Fixed-speed Select range | Premium inverter range |
Connect the HPA1-S220E to a 2.4GHz Wi-Fi network and use the Emerald App to access supported control and monitoring features.
The system draws heat energy from surrounding air.
R290 refrigerant absorbs warmth from the air.
The heat-pump circuit transfers heat into the tank water.
Cooler air is discharged after heat has been extracted.
The 220L tank keeps heated water ready for household use.
Tell us about your home and existing hot-water system.
We confirm product and installation suitability.
Licensed professionals complete the approved work.
We explain currently available incentives and eligibility.
Receive operating guidance for your new system.
It is a 220L all-in-one Emerald Select heat pump hot water system with built-in Wi-Fi, R290 refrigerant and a 1kW electric heating element.
The HPA1-S220E includes a 1kW electric heating element. The HPA1-S220 model listed in the same datasheet does not include that element.
The supplied datasheet lists a COP of 4.19 in Standard mode under its stated test conditions: ambient 20°C/15°C and water heated from 15°C to 55°C.
The listed recharge rate is 58L/h in Standard mode, 80L/h in Boost mode and 21.6L/h in E-Heater-only mode under the manufacturer’s test conditions.
Yes. It has built-in Wi-Fi and supports the Emerald App. Wi-Fi pairing requires a 2.4GHz network.
It uses a 350g charge of R290 refrigerant. Emerald lists R290 as having a global warming potential of 3.
The datasheet lists a noise level of 50dB(A), tested at a distance of 1 metre in a hemi-anechoic chamber.
Eligibility depends on the approved-product register, scheme rules, customer, property and installation at the time of application. Contact GoGetaHeatPump for a current eligibility check before purchase.
The supplied product datasheet lists 5 years on the tank, 5 years on parts and 2 years on labour, subject to Emerald’s warranty terms and conditions.
Ask about HPA1-S220E supply, installation suitability and current incentive eligibility in Victoria.
