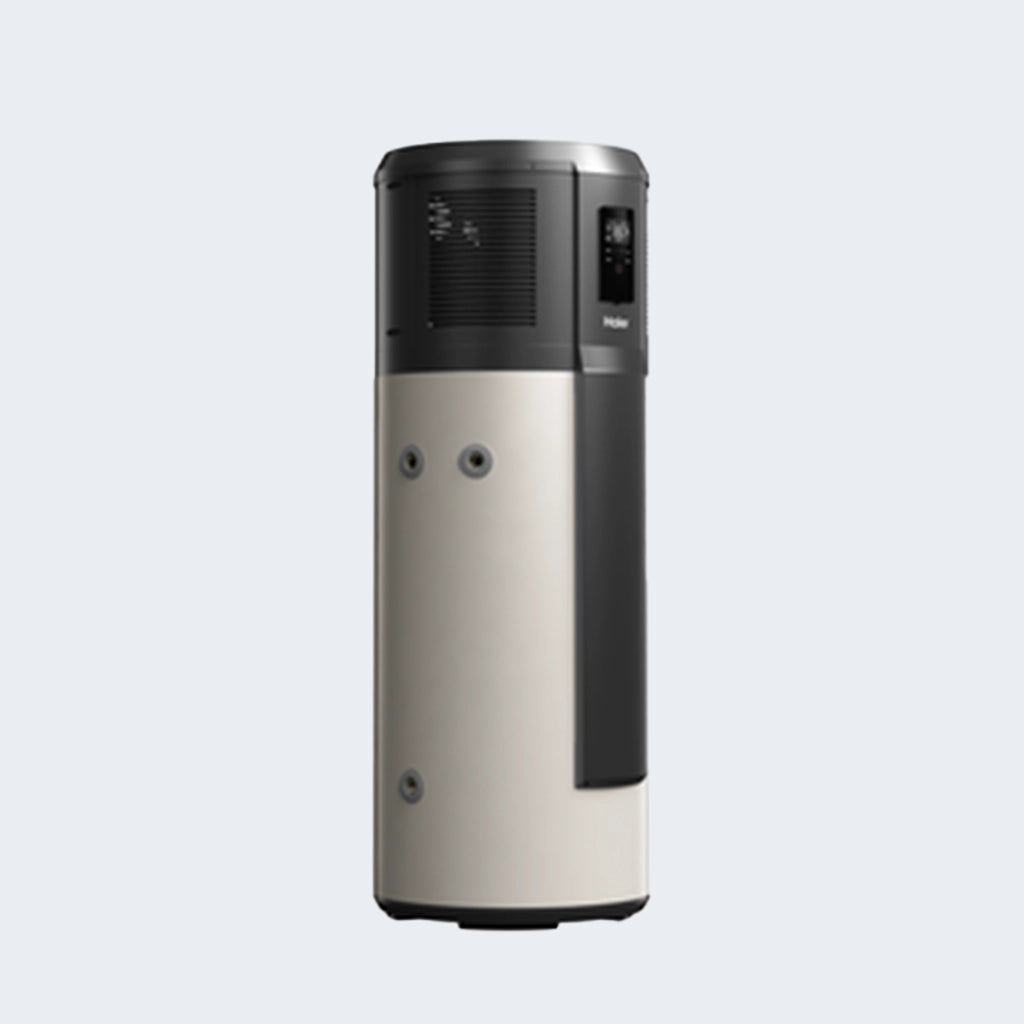

The Haier 200L Monoblock Heat Pump Hot Water System (HP200M1-U1) is an all-in-one, outdoor hot water system designed for Australian homes. Its compact 200L-class design provides 195 litres of actual water capacity.
Using air-source heat pump technology, R290 refrigerant, built-in Wi-Fi, SmartHQ™ control and compatible solar PV signal integration, it offers a practical energy-efficient option for hot water replacements and upgrades in Victoria.
Under the manufacturer's specified test conditions, the heat pump achieves a COP of 4.49 by transferring heat from the surrounding air into the stored water.
The system uses R290 natural refrigerant with a manufacturer-specified global warming potential of 3, providing a lower-GWP alternative to many traditional refrigerants.
Built-in Wi-Fi and compatible SmartHQ™ connectivity allow you to adjust supported settings and select operating modes from your smartphone.
With 195 litres of actual water capacity and a 600mm-wide footprint, this model may suit homes requiring a more compact heat pump hot water replacement.

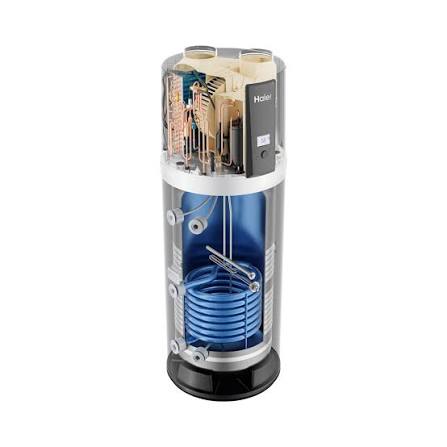

A conventional electric-resistance system creates heat directly using an electric element. The Haier HP200M1-U1 instead uses a refrigeration cycle to collect heat from the outdoor air and transfer it into the stored water.
This process allows the heat pump to deliver more heat energy to the water than the electrical energy used by the compressor under suitable conditions. A 1.5kW backup electric element is also available when required by the selected operating mode.
The appliance is designed to operate in ambient temperatures from -7°C to 45°C. Actual efficiency, recovery time and electricity use will vary with weather, incoming water temperature, settings, installation conditions and household demand.
| Specification | Details |
|---|---|
| Brand | Haier |
| Product | Monoblock Heat Pump Water Heater |
| Model | HP200M1-U1 |
| Product Code | 44025 |
| Product Type | All-in-One / Monoblock |
| Nominal Size | 200L Class |
| Total Water Capacity | 195L |
| Rated Voltage / Frequency | 220–240V / 50Hz |
| Electrical Connection | Fixed wiring on a dedicated electrical circuit |
| Tank Maximum Pressure | 850kPa |
| Corrosion Protection | Magnesium Rod |
| Ingress Protection | IP24 |
| COP @ 20°C / 15°C | 4.49 |
| Electric Element Power Input | 1.5kW |
| Rated Heat Pump Power Input | 0.43kW |
| Maximum Heat Pump Power Input | 0.75kW |
| Maximum Appliance Power Input | 2.25kW |
| Rated Heat Pump Heating Capacity | 2.0kW |
| Heating Water Capacity | 42L/hr |
| Heating Time | Approximately 4.6 hours from 15°C to 55°C under specified test conditions |
| Default Temperature Setting | 60°C |
| Temperature Setting Range | 35°C–75°C with electric element |
| Heat-Pump-Only Temperature Range | 35°C–65°C |
| Refrigerant | R290 / 0.34kg |
| Sound Pressure Level | 43dB(A) at 1 metre under specified laboratory test conditions |
| Ambient Operating Range | -7°C to 45°C |
| Water Inlet / Outlet Connection | Rp ¾" |
| PTR Connection | Rp ¾" |
| Product Dimensions | 600mm W × 630mm D × 1658mm H |
| Net Weight | 91kg |
| Filled Weight | Approximately 286kg |
| Installation Type | Outdoor installation only |
| WaterMark Certification | WMK26822 |
Specifications and performance figures are based on manufacturer documentation and test conditions. Actual performance may vary with ambient temperature, incoming water temperature, system settings, installation conditions and hot water usage. Product specifications may change; confirm current details before installation.
The Haier 200L Monoblock includes built-in Wi-Fi and works with the SmartHQ™ app. Once connected to a compatible home network, supported controls can be accessed from your smartphone.
Its operating functions help you coordinate water heating with household routines, programmed heating periods and compatible external control signals.
Primarily uses the heat pump when hot water is required. The backup element can activate if the expected heating time is exceeded.
Prioritises heat pump operation and can coordinate heating with programmed times or compatible smart-grid and solar PV signals.
Runs the heat pump and backup electric element together for one heating cycle to support faster hot water recovery when needed.
Maintains a minimum temperature while you are away, then heats to the selected temperature for your programmed return.
The Haier HP200M1-U1 includes a communications connection for compatible solar PV and smart-grid systems. It can be configured to respond to a dry-contact signal from a compatible inverter or communications accessory.
When the configured solar PV signal is received, the water heater can operate according to its programmed PV mode settings. This can help a household coordinate water heating with available solar generation rather than relying only on grid electricity.
Solar operation is not automatic without compatible equipment, correct wiring and appropriate programming. The solar PV inverter or communications device must support the required dry-contact control, and installation must be completed by appropriately licensed professionals.
The appliance is designed to operate in outdoor ambient temperatures from -7°C to 45°C, covering a broad range of Australian conditions.
The specified sound pressure level is 43dB(A) at one metre. Site assessment should still consider bedrooms, neighbouring properties and other noise-sensitive areas.
The hot water cylinder uses a magnesium rod for corrosion protection. Manufacturer-required servicing and suitable water quality remain important for long-term performance.
Model HP200M1-U1 is listed under Australian WaterMark Certificate WMK26822 for applicable plumbing product requirements.
New products installed for qualifying domestic use receive a five-year manufacturer’s warranty covering parts, subject to Haier’s warranty terms and conditions.
The initial five-year domestic manufacturer’s warranty also includes labour for covered servicing completed under the warranty conditions.
After the initial five years, Haier provides an additional two-year parts-only manufacturer’s warranty on the cylinder. Labour is excluded during this additional period.
Warranty service must be provided by a Haier-authorised service technician. Keep your proof of purchase, model, serial number and installer details for any claim.
Warranty coverage described above applies to qualifying domestic use and is subject to the manufacturer’s warranty terms, installation requirements, maintenance requirements and exclusions. Commercial-use warranty coverage differs.
Tell us about your household, property and existing electric, gas or solar hot water system.
We assess product sizing, outdoor space, drainage, plumbing, electrical supply and access requirements.
Appropriately qualified tradespeople complete the plumbing and fixed electrical connection.
Where applicable, we help with documentation for available rebates or incentives, subject to current eligibility rules.
We explain the controls, operating modes and basic use of your new heat pump hot water system.
The HP200M1-U1 is a 200L-class heat pump hot water system with a manufacturer-specified total water capacity of 195 litres.
Pricing depends on the installation location, existing hot water system, plumbing and electrical requirements, access and any additional work identified during the site assessment. Contact GoGetaHeatPump for a quote based on your Victorian property.
Suitability depends on your household’s hot water demand, usage pattern, available outdoor space and installation conditions. The system has 195 litres of actual water capacity, so correct sizing should be confirmed before purchase.
It uses R290 natural refrigerant with a manufacturer-specified refrigerant charge of 0.34kg.
The manufacturer specifies a COP of 4.49 at its stated 20°C/15°C ambient and 15°C–55°C water-heating test conditions. Actual efficiency varies with climate, water temperature, settings, installation and usage.
The manufacturer specifies a sound pressure level of 43dB(A) at one metre under laboratory test conditions. The installation position should still be selected carefully to reduce potential disturbance near bedrooms and neighbouring properties.
Yes, when used with compatible equipment. The unit can receive a dry-contact signal from a compatible solar PV inverter or communications accessory and operate according to programmed PV settings. Correct electrical connection and configuration are required.
Yes. It has built-in Wi-Fi and supports compatible control through the SmartHQ™ app, allowing access to supported settings and operating modes from a smartphone.
The unit measures approximately 600mm wide, 630mm deep and 1658mm high. Installation and future servicing also require suitable clearances, drainage and access.
It may be suitable as a replacement for an existing electric or gas storage hot water system, subject to a site assessment. The assessment should confirm sizing, outdoor placement, drainage, plumbing, electrical requirements and any removal or relocation work.
Yes. Haier specifies that this R290 monoblock heat pump must be installed outdoors in a suitable, well-ventilated location and in accordance with the installation manual and applicable regulations.
No. The HP200M1-U1 is a fixed-wiring model and requires a dedicated electrical circuit with compliant means of disconnection. Electrical installation must be completed by an appropriately licensed electrical tradesperson.
For qualifying domestic use, Haier provides a five-year manufacturer’s warranty covering parts and labour. An additional two-year parts-only warranty applies to the cylinder after the initial five-year period. Manufacturer’s warranty terms and conditions apply.
An installation may qualify for available incentives depending on the approved product listing, property, installation address, system being replaced and current program requirements. Eligibility and incentive values should be confirmed before installation and cannot be guaranteed.
Find out whether the HP200M1-U1 is the right heat pump hot water replacement for your Victorian home.
